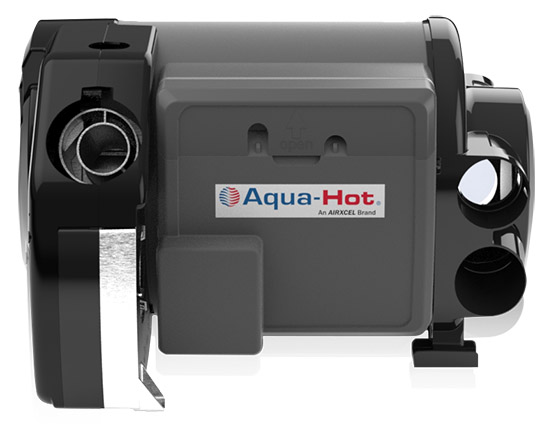

Aqua-Hot Gen1

A furnace and water heater combination with high altitude performance up to 15,000 ft.

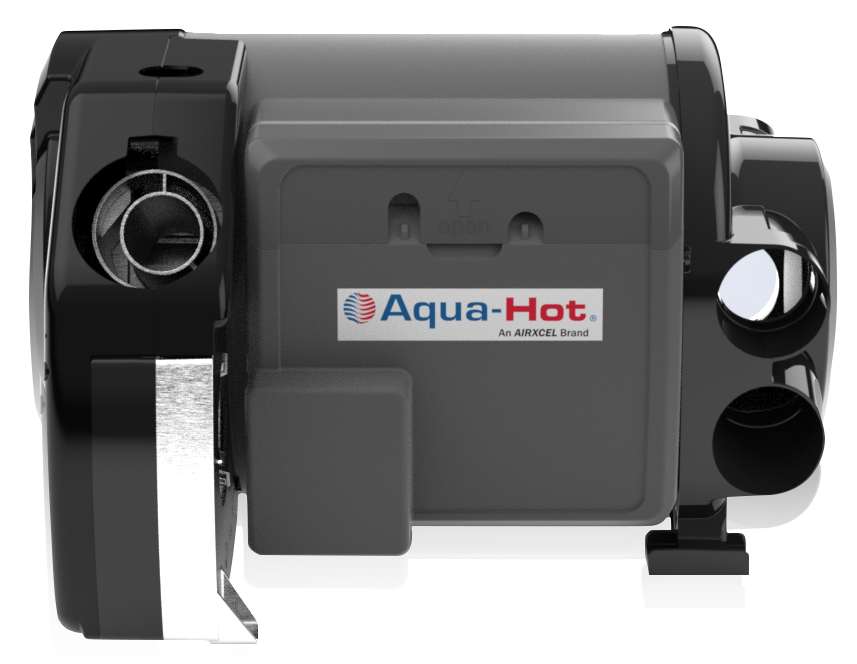

GEN 1 - 2

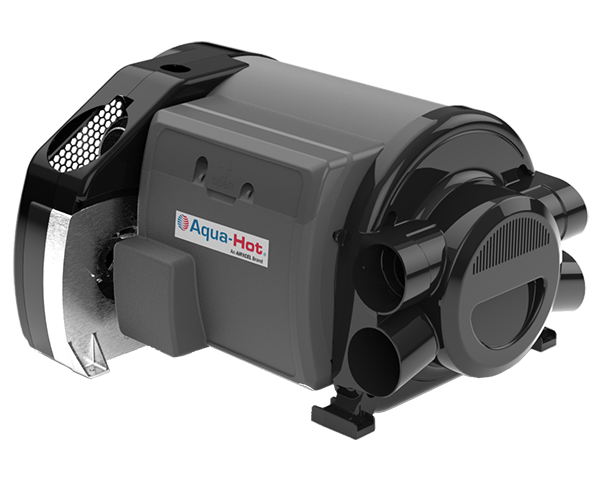

GEN 1 - 1

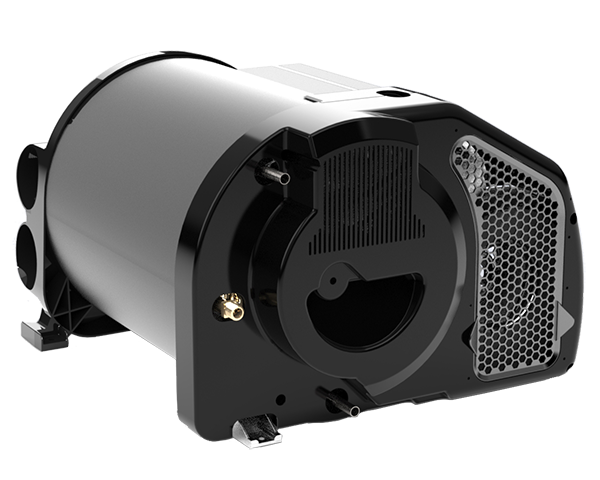

GEN 1 - 3

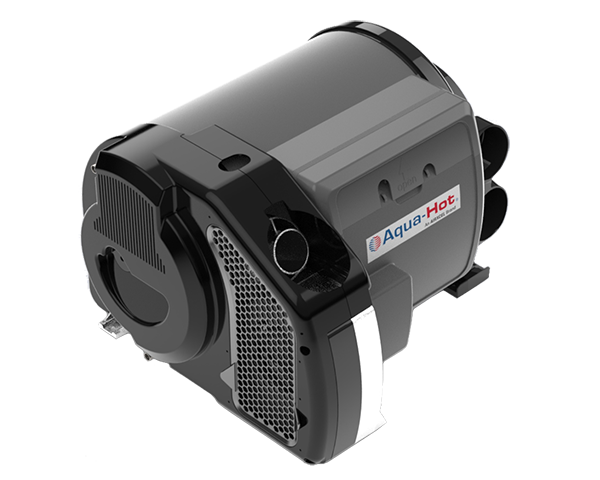

GEN 1 - 4

35 years of design expertise back the luxury RV comfort systems by Aqua-Hot now featuring the innovative Gen1.

The Gen1 is a multi-purpose, single appliance designed to save space and weight in a vehicle while still providing the highest level of environmental comfort as well as 2.64 G of hot water. The Aqua-Hot Gen1 can heat water independently of the furnace, keeping RV owners comfortable year-round and ensuring they’re always ready for a luxurious hot shower from anywhere on the road. Warm air flows into the coach’s interior through 4 air outlets where it is distributed evenly and efficiently for a consistently comfortable internal temperature. The Aqua-Hot Gen1 is rated for high altitude operation up to 15,000 feet above sea level – compared to competitive models that are only rated up to 4,000 feet. Gen1 uses RV-C Open-Source intelligence for user-friendly control and easy integration into the RV’s multiplex system.

A Heating and Hot Water Heater System

  • - High Altitude Rated up to 15,000 ft
  • - No Anode Design
  • - Easy-to-use Controls
  • - Automated Timer
  • - 4 Heating Fan Speeds
  • - 10 Air Circulation Fan Speeds
  • - Open Source/ RVC ready
Aqua-Hot GEN 1
Thermometer


Gen1 P

Gen1 G

Gen1 D

Hot Water Capacity

2.64 G stainless steel tank

2.64 G stainless steel tank

2.64 G stainless steel tank

Time to Heat the Water Tank

20 Minutes

20 Minutes

20 Minutes

Fuel Type

Propane

Gasoline

Diesel

Heating Output

20,000 BTU/hr

13,500 BTU/hr

13,500 BTU/hr

Heat Output on Electric

6,000 BTU/hr

6,000 BTU/hr

6,000 BTU/hr

Fuel Consumption (maximum)

.35 to 1.05 lb/hr

.19 gal/hr

.16 gal/hr

Power Supply

12 V DC - 110 V AC

12 V DC - 110 V AC

12 V DC - 110 V AC

Current Draw (maximum)

15.6 A

15.6 A

15.6 A

Dimensions (L x W x H)

20.1" x 17.7" x 11.8"

20.1" x 17.7" x 11.8"

20.1" x 17.7" x 11.8"

Weight (Without Water)

34.4 lbs

34.4 lbs

34.4 lbs

Air Flow Rate

169 CFM

169 CFM

169 CFM

Altitude Operating Range

Up to 15,000 ft

Up to 15,000 ft

Up to 15,000 ft
